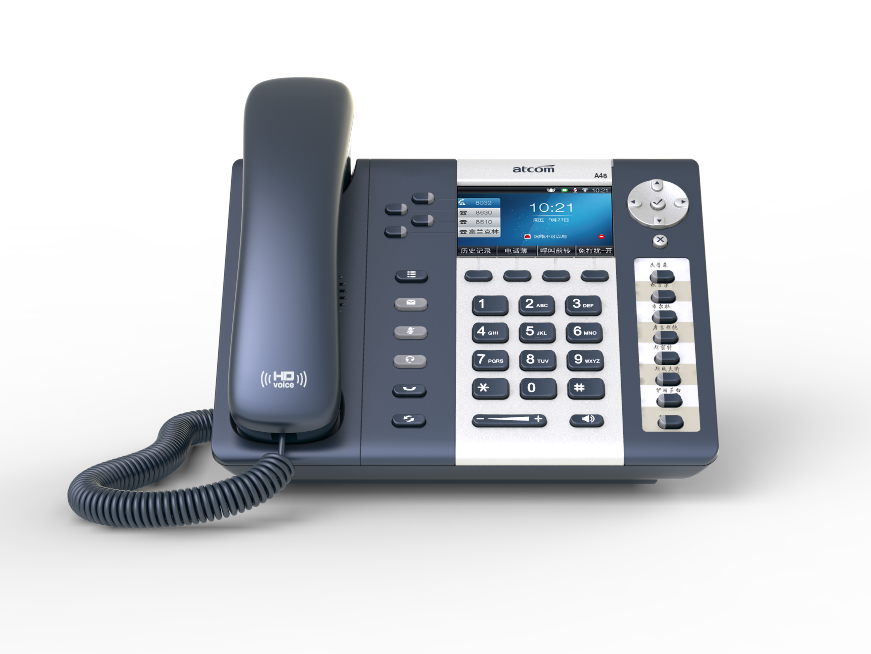

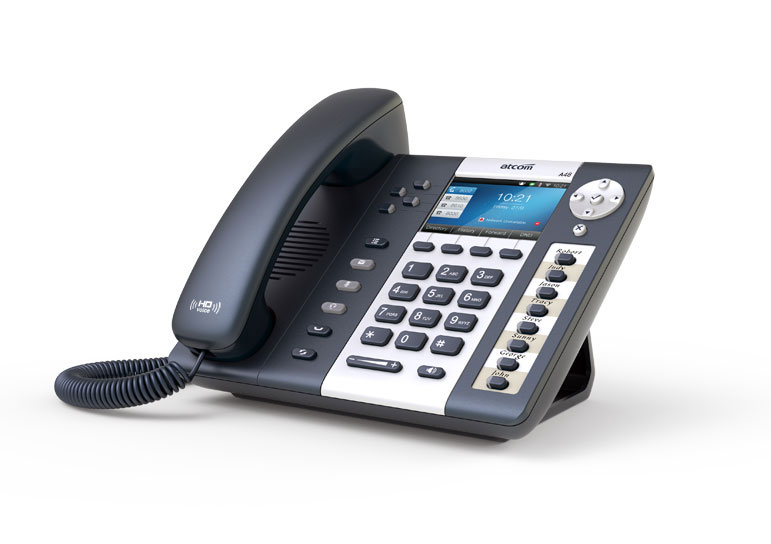

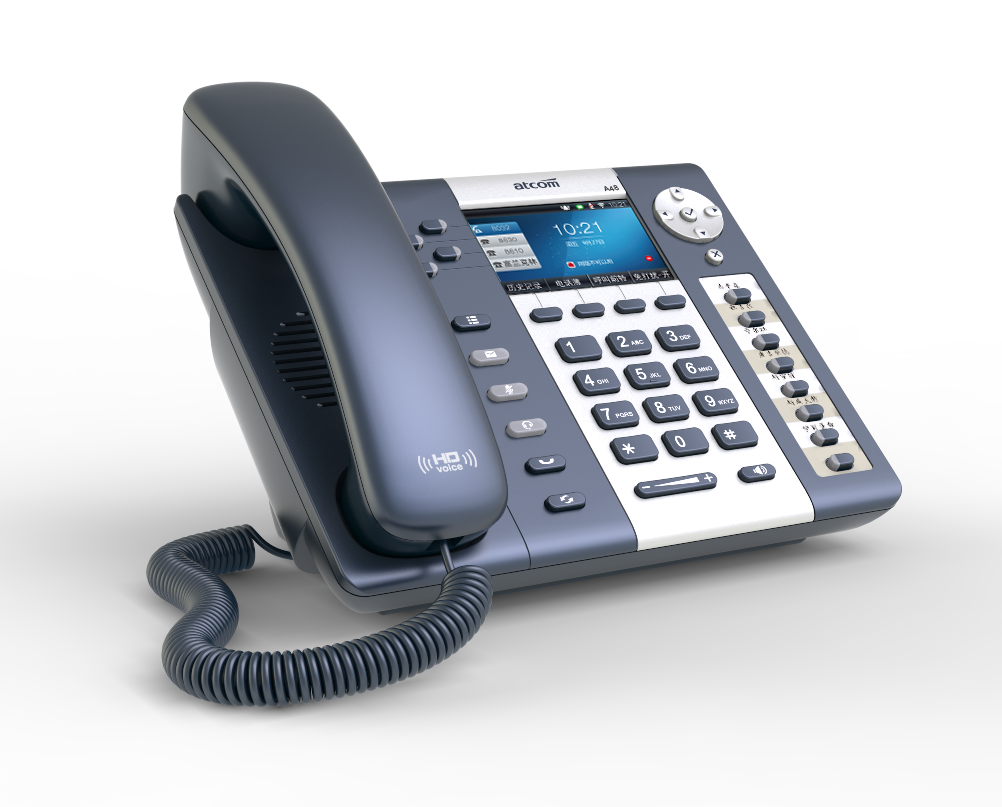

Atcom A48/A48w Color Display Executive level IP Phone

Made for manager level users in the office
A48W is a 4 SIP accounts, WiFi access optional, with a 3.2-inch 462×278 pixel color screen IP Phone, which has 4 soft keys, 8-speed dial programmable keys and extended to 4.3-inch 480×272 pixel TFT LCD extension module, convenient operation performance and friendly UI, and TIA920 high definition wideband voice standard, with clear HD voice. It is designed for business level enterprise unified communication application.
Category:

Description

3.2 inch TFT color display enrich your colorful life

Top level voice quality

Powerful BLF+BLA function

WIFI + cable connection enable flexible deployment

Dual core CPU is the guarantee of high quality IP phone



One core for instruction process and the other core for voice
decoding greatly improve the sound quality and make it possible
to run more complicated applications fluently.

Specification

Basic functions
3.2″ TFT LCD, 462*278 Pixel, 4 SIP accounts,Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Caller ID, Redial, Mute,DND, Local 3-Way Conferencing, Speed Dial, Voice Mail, Local Phonebook (upto 400 entries), Direct IP call without SIP proxy, Black list, White list, Dialed/Received/Missed/Forward call ( 400 in total), Call Center Headsets mode,support EHS headset

Management
Configurable through web interface/phone, Provisioning: Auto-provision via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, Redirection and Provisioning(RPS)
IP PBX Features
Intercom, Paging, Call pickup, Call park, Anonymous call, Anonym ous call rejection, Hold on music, Conference Call, Group pickup, DND&Call forward state synchronization, Call Recording

Physical

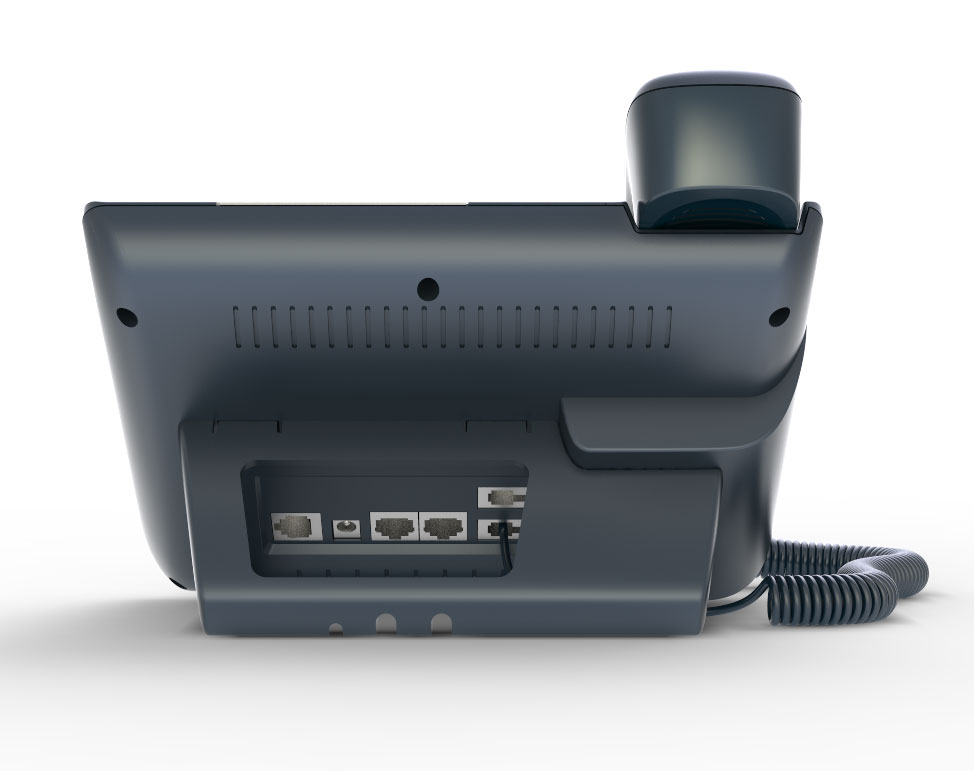

Power Interface: DC 5V-1A, PoE power supply: IEEE 802.3af Class 2 2x RJ45 100/1000M adaptive Ethernet ports, 1x RJ9 headphone jack, 1x RJ9 handset jack
Mult-language
English, German, Italian, French, Spanish, Portuguese, Russian, Chinese, Arabic, Polish, Turkish ? Hebrew

Keys Features
1 status indicator, 4 line keys, 4 soft keys, 5 navigation keys, 1 vo lume keys, 8 function keys (menu, cancel, hold, voicemail, mute, headphone, redial, hands-free)
Advanced Features
LDAP, Microsoft active directory(AD) server, XML remote phonebook,Action URL,TR069

Temperature and Humidity
Operating temperature: -10 ~ 50°C, Operating humidity: 10 ~ 90%
Audio Features
10(own ring tone+custom ring tone article), 8 volume adjustable + Mute mode, Narrowband codec: G.711(a/?), G.729A/B/AB, G.726, iLBC, Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC

Management
Configurable through web interface/phone, Provisioning: Auto-provision via FTP/TFTP/HTTP/HTTPS, DHCP Option 66, Redirection and Provisioning(RPS)
Network Features
LAN / PC: support bridge mode, Open VPN,IPv4&IPv6,SIP connection mode: Proxy mode, and P2P mode, Support DNS SRV (RFC3263). NAT transverse: STUN mode. DTMF: In-band, RFC2833, SIP INFO, Support QoS, HTTP / HTTPS web server, Package tracing export, Syslog

Package
Qty/CTN: 10 PCS , G.W/CTN: 15KG, Giftbox size: 325 m m(L)*210mm ( W ) *80mm(H) Carton Meas: 425mm(L) *415mm(W) *345mm(H)
WiFi Features(A48W only)
IEEE 802.11b/g/n, Enhanced support for IEEE 802.11e QoS,  IEEE802.11i (WPA, WPA2) authentication

Certifications
CE: EN60950 FCC: Part15
Security
VLAN, LLDP, IEEE802.1X, TLS, HTTPS, SRTP (RFC3711), Digest authentication using MD5/MD5-sess, AES encryption for configuration file s, Phone lock, User and administrator level access control

Models
A48/A48W Models PoE Wifi Gigabit
A48W Y Y Y
