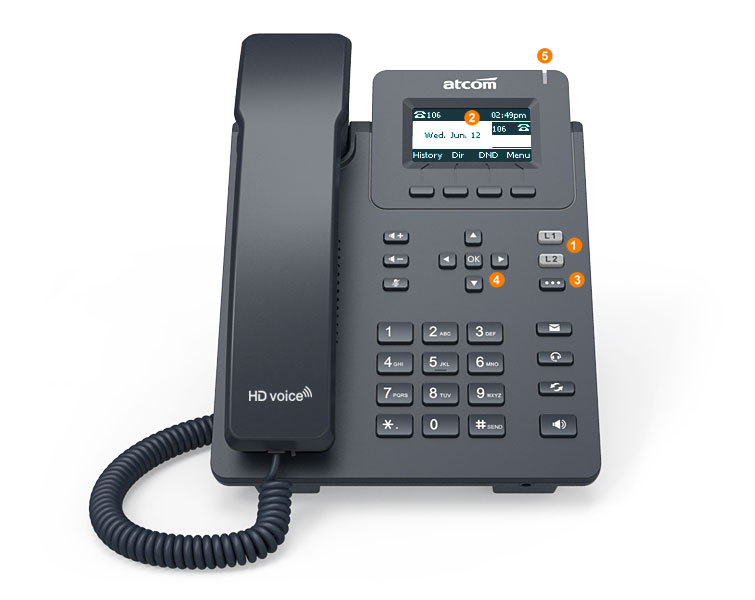

Description
6 SIP accounts,L1 and L2 line support monochrome LED light
128*64 graphic lattice LCD
Multi-scene switch key
Navigation key
LED Phone status indicator

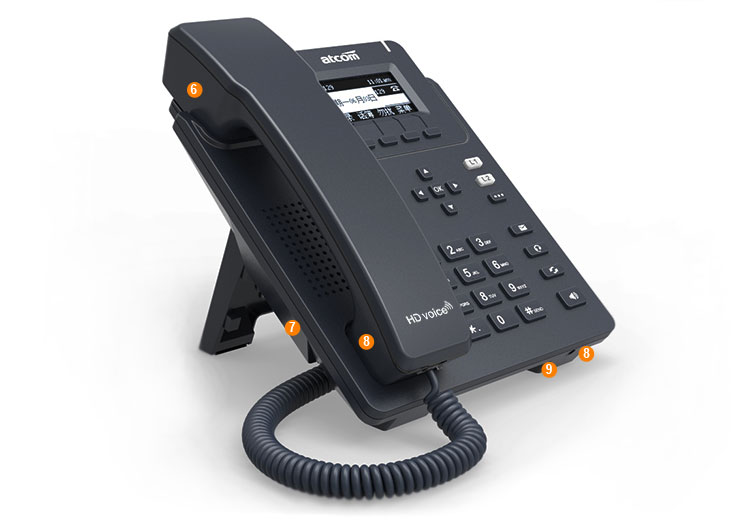

HD full range telephone receiver
High-power loudspeaker
Anti-interference microphone(handset and speakerphone)
Closed microphone cavity

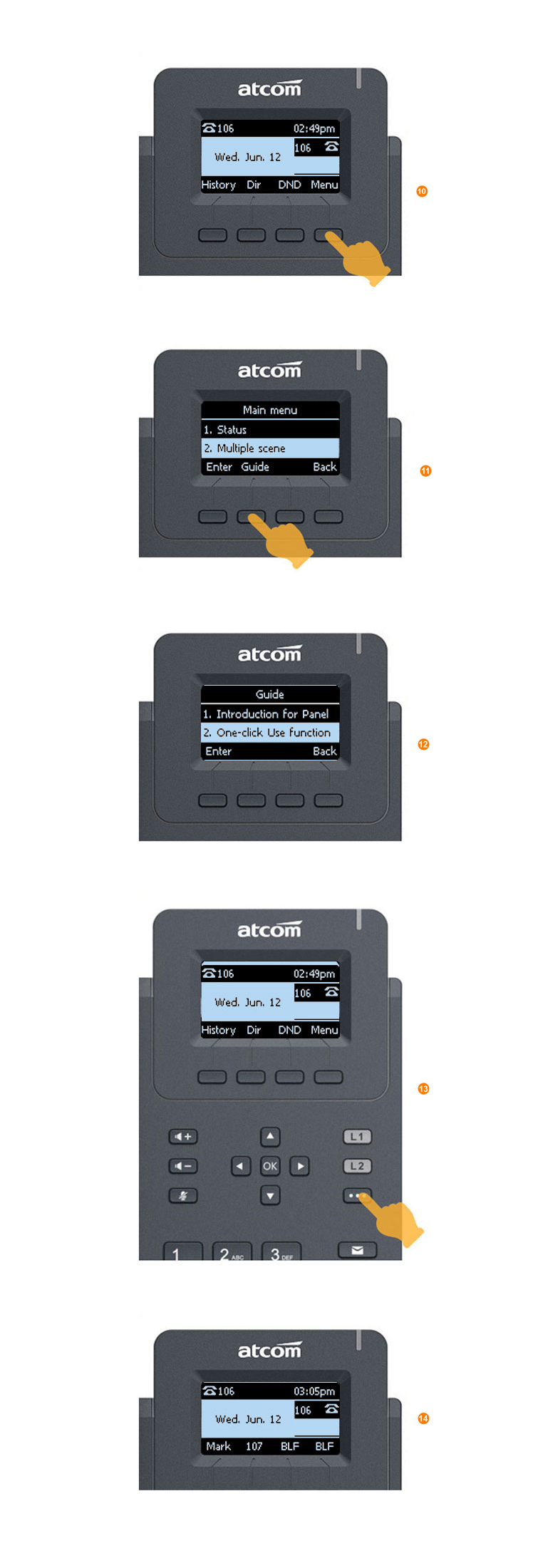

Enter the guide interface. First: press the Menu Key
Second: Enter the main menu interface,and press the second soft key
Last: Enter the guide interface and check the different guide setup
D series new feature, add multi-scene key, enter the different multi-scene user mode, the most can switch 4 times and add 12 BLF programmable keys. First: press the multi-scene key
Second: Enter the other softkey user modeSpecification
| Basic functions 128*64 graphic character dot matrix with full view of backlight LCD, 6 SIP accounts, Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Redial, Mute, DND, Local 3-Way Conferencing, Speed Dial, Voice Mail, Local Phonebook (up to 1000 ), Direct IP call without SIP proxy, Black list, Dialed/Received/Missed/Forwarded call (400 total), Call Center Headsets mode | Quick to use features VoLTE Basic Feature: Call Waiting, Call Hold, Redial, Mute, 3-Ways Conferencing, Speed Dial, Voice Mail | IP PBX Features SIP Basic Feature: 6 SIP accounts, Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Redial, Mute, DND, Speed Dia Local 3-Way Conferencing, , Voice Mail, Local Phonebook (up to 1000 ), Direct IP call withour sip proxy, Intercom, Paging Group pickup, Call pickup, Call park, Anonymous call & call rejection, Hold on music, Conference Call, Call Recording, DND&Call forward state synchronization, LDAP, XML remote phonebook, Action URL, Active URI, CSTA, Muticast paging |
| Mult-language English, German, Italian, French, Spanish, Portuguese, Russian, Simplified or Traditional Chinese, Polish, Turkish, Hebrew | Advanced Features LDAP, XML remote phonebook, Action URL, Active URI, CSTA, Multicast paging | Audio Features 5 ringtons (system ringtone or custom ringtone) article, 8 volume adjustable & Mute mode, Narrowband codec: G.711(a/μ), G.729A/B/AB, G.726, iLBC, OPUS, Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC |
| Network Features It has two 100M ethernet ports and support routing function in 3G & 4G network for each ports. | 4G(LTE) LTE Feature: Support LTE TDD、LTE FDD、WCDMA、TD-SCDM | WiFi Support IEEE 802.11b/g/n, Enhanced support for IEEE 802.11e QoS, Support LTE network AP share feature |
| SIP / VoLTE Dual Mode Support call waiting between SIP call and VoLTE call, Support the design of the programmable line keys and multi-function keys | Security TLS, HTTPS, SRTP (RFC3711), Digest authentication using MD5/MD5-sess, AES encryption for configuration files, Phone lock, The administrator/user level access control | Physical Power Interface: DC 5V-1A, 1x or 2x RJ45 ports, 1x RJ9 handset jack,1 USB Typc-C jack,1 status indicator, 4 soft keys, 5 navigation keys, 2 volume keys, 5 function keys (voicemail, mute, redial, headphone, hands-free), 2 line keys, 1 multi-scene key |
| Auto Provisioning FTP/TFTP/HTTP/HTTPS, DHCP Option 66 or custom Option 128~254, PnP, Redirection Provisioning Service (RPS) , TR069, Import/Export CFG file via web, Generate multiple configuration files via tool, Periodic check and update, Support ATCOM cloud IP terminal management platform (ADMP) to provisioning. | Management Configurable through web interface / phone LCD setting | Temperature and Humidity Operating temperature: -10 ~ 50°C, Operating humidity: 10 ~ 90% |
| Packaging information Qty/CTN: 10 PCS, G.W/CTN: 8.5-9 KG, Unitbox size: 230mm(L) *180mm(W) *90mm(H) Carton Meas: 460mm(L) *236mm(W) *164mm(H) | Certifications CE: EN 55032:2015/A11:2020 EN IEC 61000-3-2:2019 EN 61000-3-3:2013/A1:2019 EN 55035:2017/A11:2020  | |
PBX Compatibility |
