Description

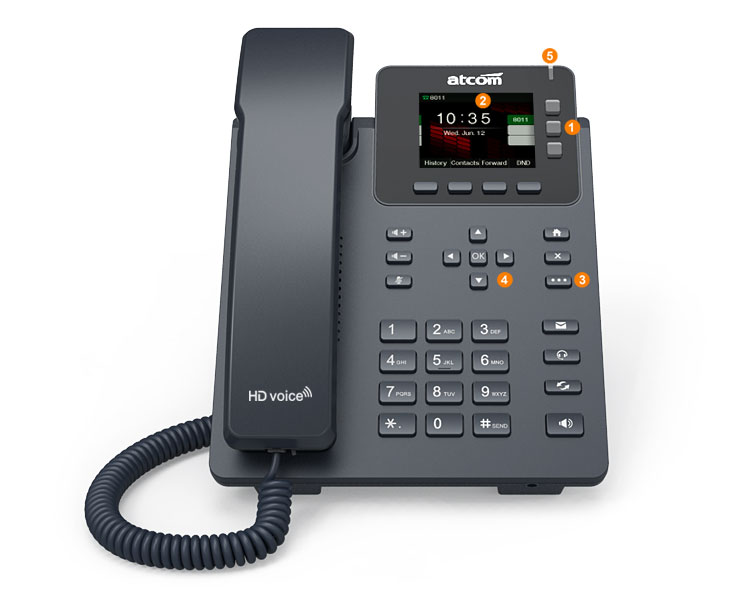

6 SIP accounts,L1 and L2 line support monochrome LED light
2.4″, 320*240 revolution Color LCD
Multi-scene switch key
Navigation key
LED Phone status indicator

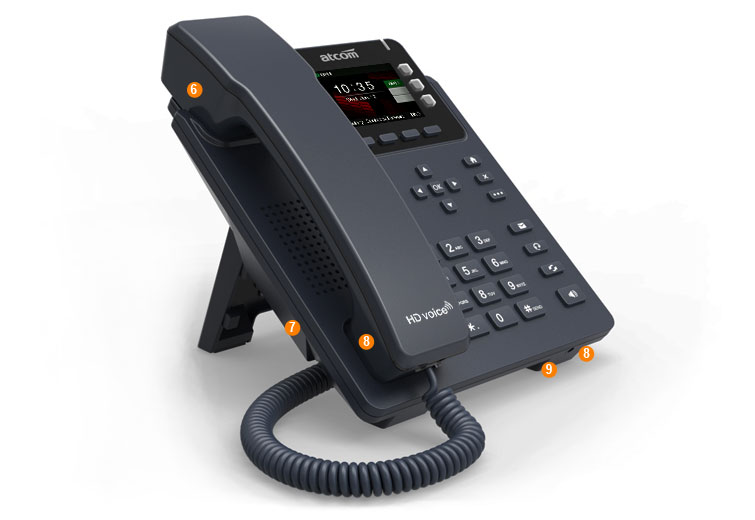

HD full range telephone receiver
High-power loudspeaker
Anti-interference microphone(handset and speakerphone)
Closed microphone cavity

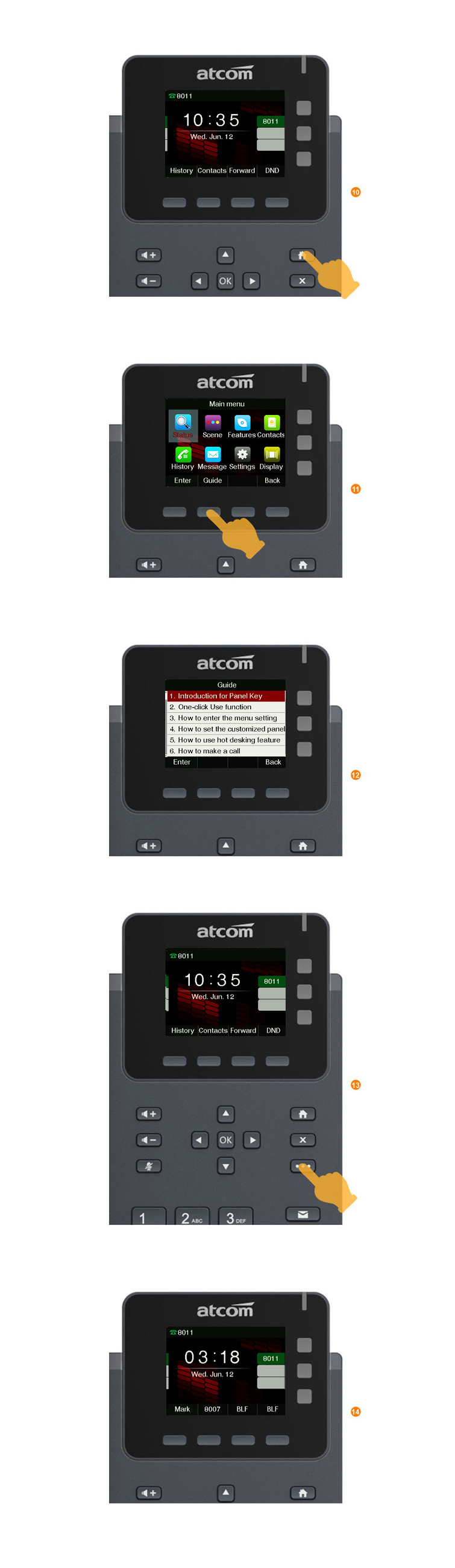

Enter the guide interface. First: press the Menu Key
Second: Enter the main menu interface,and press the second soft key
Last: Enter the guide interface and check the different guide setup
D series new feature, add multi-scene key, enter the different multi-scene user mode, the most can switch 4 times and add 12 BLF programmable keys. First: press the multi-scene key
Second: Enter the other softkey user modeSpecification
| Basic functions 2.4”TFT LCD, 320*240 pixel, full view, 6 SIP accounts, Call Forward, Call Transfer, Call Waiting, Hotline, Call Hold, Auto Answer, Redial, Mute, DND, Local 3-Way Conferencing, Speed Dial, Voice Mail, Local Phonebook (up to 1000 ), Direct IP call without SIP proxy, Black list, Dialed/Received/Missed/Forwarded call (400 total), Call Center Headsets mode | Quick to use features Multi-scene feature, Guide user document, 13 programmable keys, One key to arrive menu, One key to read the phone information, Intelligent search for phonebook, Dial assistant | IP PBX Features Supports Intercom, Paging, Call pickup, Call park, Anonymous call, Anonymous call rejection, Hold on music, Conference Call, Group pickup, DND&Call forward state synchronization, Call Recording. |
| Mult-language English, German, Italian, French, Spanish, Portuguese, Russian, Simplified or Traditional Chinese, Polish, Turkish, Hebrew | Advanced Features Multicast, LDAP address book, XML remote address book, Action URL | Audio Features 5 ringtons (system ringtone or custom ringtone) article, 8 volume adjustable & Mute mode, Narrowband codec: G.711(a/?), G.729A/B/AB, G.726, iLBC, OPUS, Wideband codec: G.722, L16, Support VAD, CNG, AEC, PLC, AJB, AGC, Full-duplex speakerphone with AEC |
| Network Features IPv4 & IPv6, OpenVPN, IEEE 802.1X, STUN NAT Traversal, RPORT, SIP connection mode: Proxy mode, Peer to Peer. Support DNS SRV (RFC3263). DTMF: In-band, RFC2833, SIP INFO, HTTP/HTTPS web server. Package tracing export by web. Support DHCP Option12 host name andOption 60 Vendor Class ID, Syslog. | WiFi support IEEE 802.11b/g/n, Enhanced support for IEEE 802.11e QoS, IEEE802.11i (WPA, WPA2) authentication | Security TLS?HTTPS?SRTP protocol (RFC3711), ZRTP(special version), support 'Accept trusted server only', support information verification mechanism MD5/MD5-SESS, support AES encryption algorithm (profile encryption), support four level phone lock, administrator/user hierarchic pattern |
| Configuration Plug and Play Configuration: implemented base on server, manual configurate: local WEB page configuration, LCD user interface configuration. | Batch deployment HTTPS / HTTP / FTP / TFTP / RPS / PnP / DHCP Option 66, TR069, WEB import and export configuration templates, configuration file batch generation tool, periodic testing and updating | Physical power Interface: DC 5V-0.6A, 1x RJ45 adaptive Ethernet ports, 1x RJ9 headphone jack, 1x RJ9 handset jack, The power consumption 2.1W maximum |
| Temperature and Humidity Operating temperature: -10 ~ 50? Storage temperature: -10 ~ 50? Operating humidity: 10 ~ 90% | Packaging information Qty/CTN: 10 PCS, G.W/CTN: 8.5 - 9 KG, Giftbox size:230mm(L) *180mm(W) *90mm(H) Carton Meas: 460mm(L) * 236mm(W) *364mm(H) | Certifications CE: EN60950,EN50332,EN300328 V1.9.1 FCC: Part15,Part15.247  |
PBX Compatibility |
