COMFAST CF-EW72 V2 High Performance 1200Mbps Dual Band Outdoor WIFI Access Point

  • WIFI Access Points
  • COMFAST CF-EW72 V2 High Performance 1200Mbps Dual Band Outdoor WIFI Access Point

COMFAST CF-EW72 V2 High Performance 1200Mbps Dual Band Outdoor WIFI Access Point

රු 24,500.00

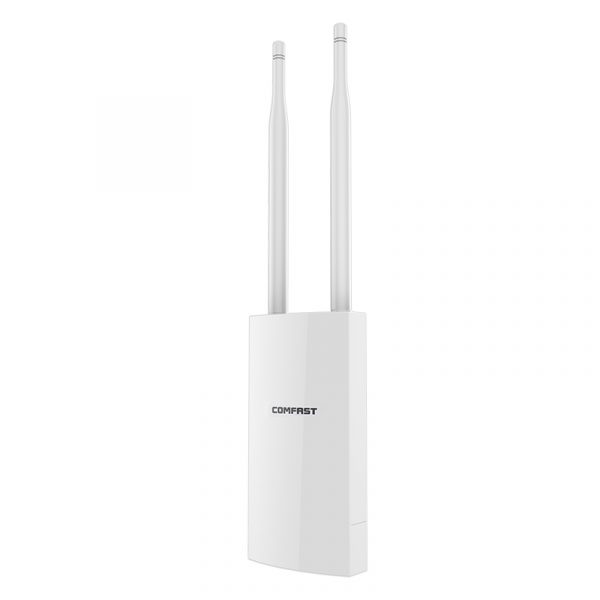

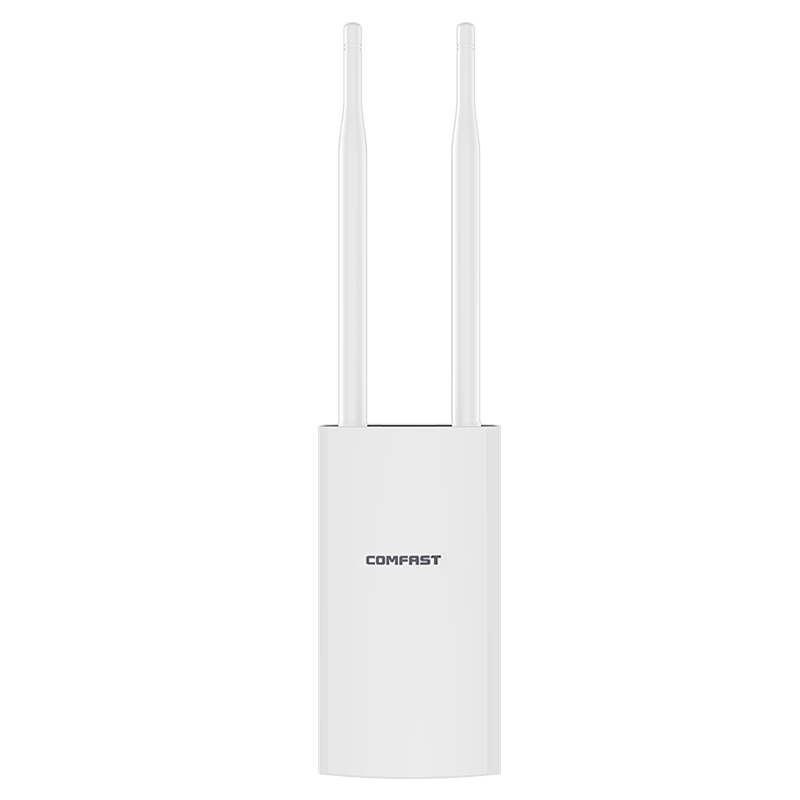

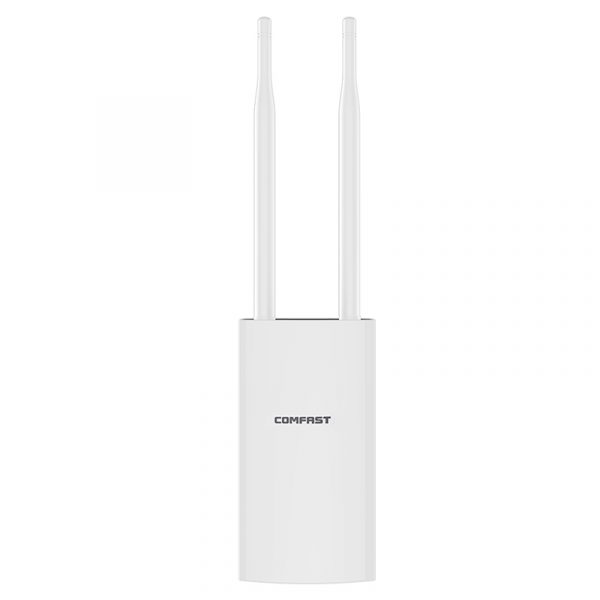

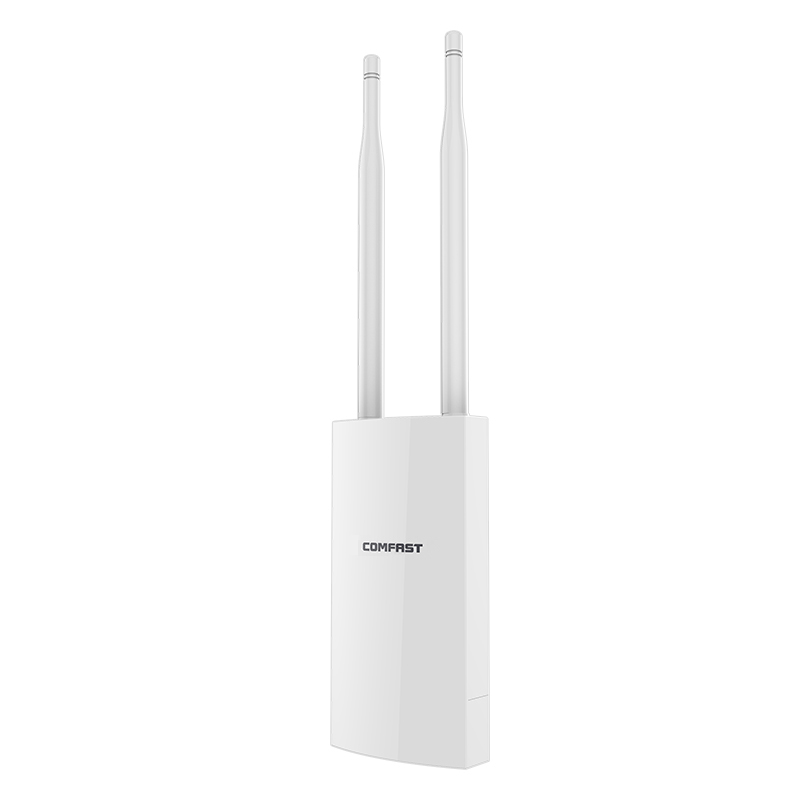

CF-EW72 V2 is an all whether proof Outdoor Dual Band Access Point bursting speed up to 1200Mbps, CF-EW72 V2 also features lightning protection capabilities. Access point comes with two extensive High-gain antennas that provides 360 degrees omnidirectional coverage without dead ends. AP has high density client capacity allowing seamlessly and simultaneously connect up to 120 users. CF-EW72 V2 outdoor aps automatically selects suitable channel according to the wireless channel usage in the environment to avoid co-channel interference and keep steady WIFI network.

Category:

Description

Specification

Hardware SpecificationMT7621DAT+MT7613BEN+MT7603E;
DDR: 128MB; Flash: 16MB;Built in Watchdog Chipset;
PA Chipset: 2.4G KCT8227D;
Supports the maximum number of end users:120+
AntennaExternal 2*5dBi Antennas
Wireless Rate2.4GHz :300Mbps
5GHz :867Mbps
RF ParametersOutput Power (Max): 200mW (23dBm);
Receiving Sensitivity (Min): -96dBm;
Frequency: 802.11b/g/n : 2.412GHz-2.484GHz
802.11ac/n/a : 5.180GHz-5.825GHz
Modulation Mode11b : DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps
11a/g : OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,
BPSK@6/9Mbps
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM

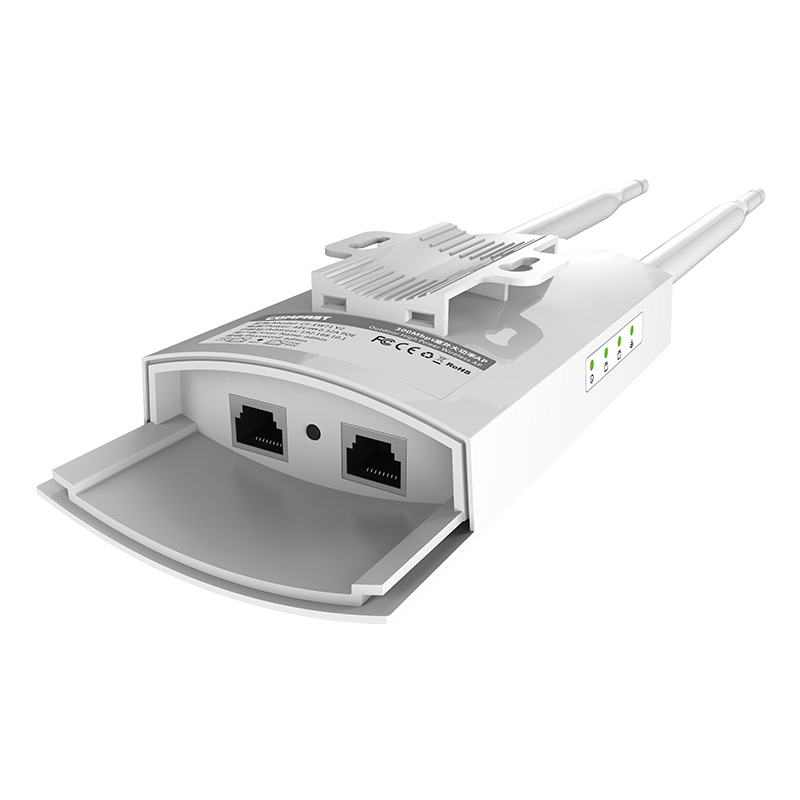

Physical Ports1*10/100/1000Mbps LAN RJ45 Ethernet Port;
1*10/100/1000Mbps WAN RJ45 Ethernet Port;
1*Reset Buttons
IndicatorWAN, LAN, WiFi,Power
PowerPower Supply: 802.3af/at POE Power Supply(0-100m);
Power Adapter: 48V 0.32A POE Power Adapter(Configured)
Power Consumption(Max)<13W
IP IndexIp66
MTBF>250000H
Installation WayWall-mounted/Pole-mounted
CasePlastic Case (Imported ABS Material)
Physical FeaturesSize: 353*85*43.5mm
Working EnvironmentWorking Temperature: 0 C~40 C;
Storage Temperature: -40 C~70 C;
Working Humidity: 10%~90%RH Non-condensing;
Storage Humidity: 5%~95%RH Non-condensing
