Description
Specification

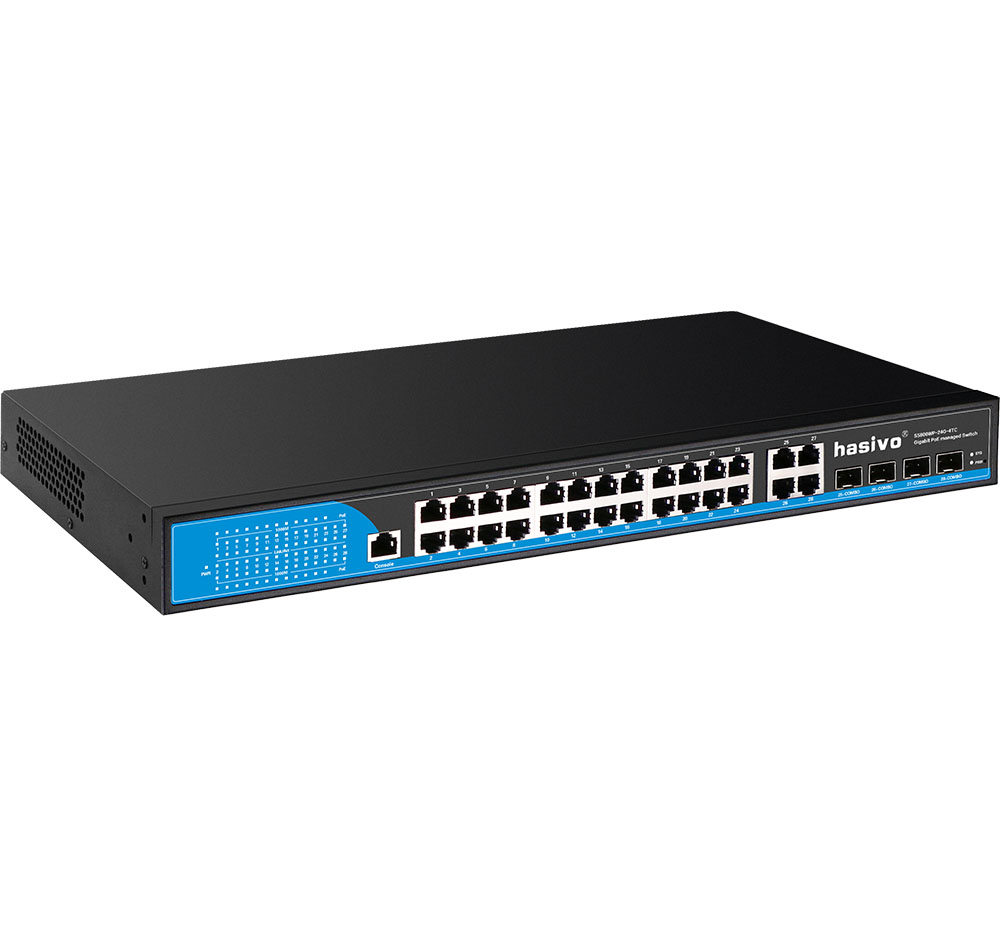

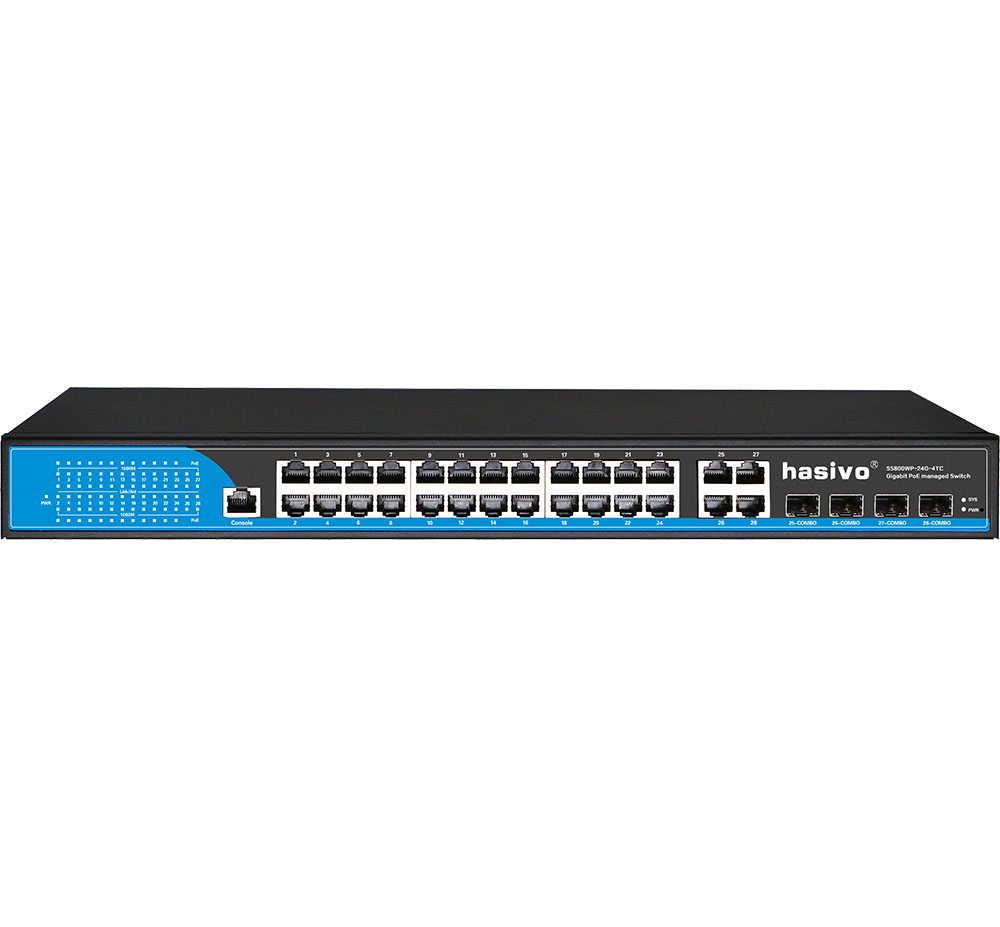

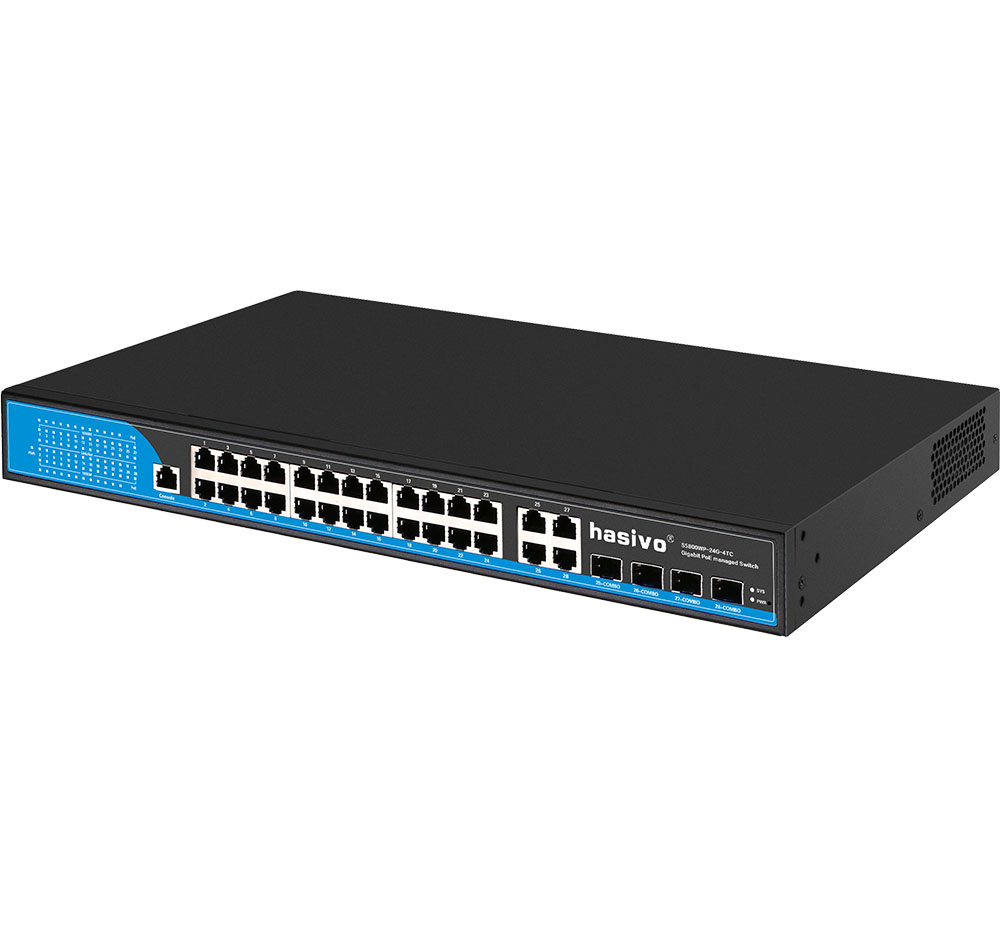

| Model | S5800WP-24G-4TC |
| Fixed port | 24*10/100/1000Base-TX PoE port 4*COMBO |
| Console port | 1*console port |
| Reset Key | 1 |
| Network Protocol | IEEE 802.3x IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z IEEE 802.3ad IEEE 802.3q 、IEEE 802.3q/p IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S IEEE 802.3z 1000BASE-X IEEE 802.3af/at STP(Spanning Tree Protocol) RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol EAPS ring network protocol |
| Port Specification | 10/100/1000BaseT（X） Auto |
| Transmission Mode | Store and Forward(full wirespeed) |
| Bandwidth | 56/128Gbps |
| Packet Forwarding | 40.32Mpps |
| MAC Address | 8K |
| Buffer | 4.1M |
| Transmission Distance | 10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) 1000BASE-TX ： Cat6 or later UTP(≤1000 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) |
| FLASH | 128M |
| RAM | 128M |
| Watt | ≤400W |
| LED Indicator | PWR:Power LED(Over-power LED) SYS:(System LED) 1~24:(Link LED=10/100M Link、1000M=Gigabit Link） 25~28:(COMBO LED) |
| Power | Built-in power AC 100~240V 50/60HZ |
| Operating Temperature/Humidity | -20～+55°C；5%～90% RH Non coagulation |
| Storage Temperature/Humidity | -40～+75°C；5%～95% RH Non coagulation |
| Product size/Packing size（L*W*H） | 440mm*290mm*45mm 515mm*375mm*95mm |
| N.W/G.W（kg） | 3.6kg/4.4kg |
| Installation | Rack-mount(optional machine hanger spare parts |
| Lightning protection level | 3KV 8/20us； IP30 |
| Certificate | CE mark, commercial；CE/LVD EN60950； FCC Part 15 Class B；RoHS； |
| Warranty | Whole device for 1 year(Accessories not included) |
